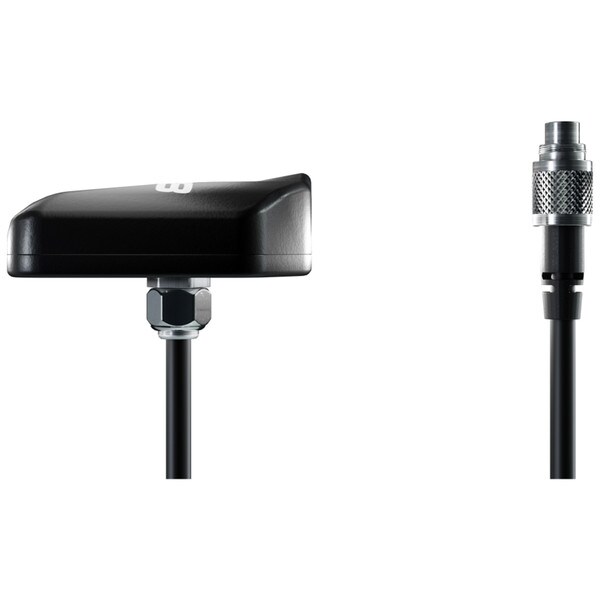

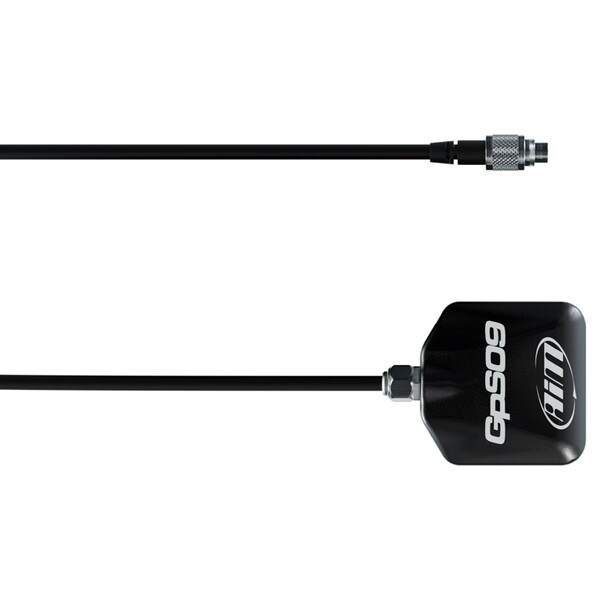

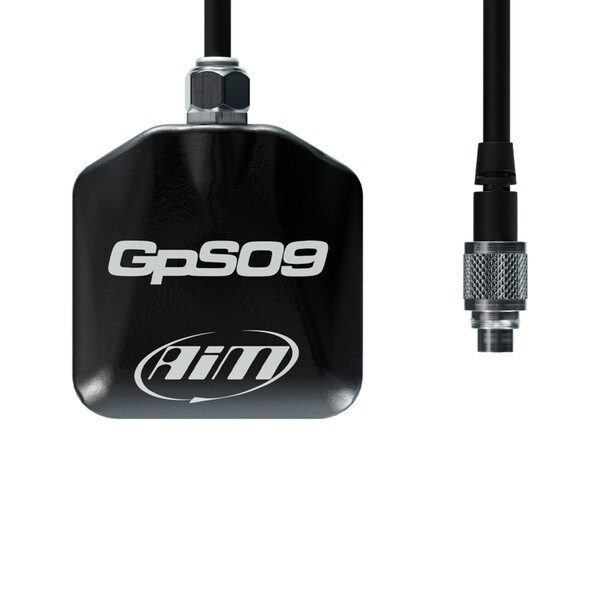

AIM GPS09 Module for AIM Dashes

The AiM GPS09 Module adds accurate GPS data and lap timing to Link’s MXS, MXG and MXT Strada displays, providing real-time speed, position and acceleration data alongside detailed lap and split timing for performance analysis on the track.

Operating at 25 Hz with an average positional tolerance of less than 0.5 m, the GPS09 rapidly acquires satellite signals and uses multiple satellite systems to maintain accurate and reliable positioning. Speed data is provided directly via GPS, making it particularly useful in applications where a wheel speed signal is unavailable or not utilised, such as boats and transmission swaps.

With more than 4,000 tracks available worldwide, the GPS09 can automatically recognise the circuit and start recording lap data without requiring track configuration before your session. Lap, split, delta, predictive and theoretical lap times provide valuable information for analysing vehicle performance and improving driving technique. Data and configurations can be managed and reviewed using AiM Race Studio 3.

Designed for simple integration with Link’s MXS, MXG and MXT Strada displays, the GPS09 provides a plug-and-play solution for adding accurate GPS positioning, speed and lap timing data to your AiM display system.

25 Hz GPS sampling rate.

Average positional tolerance of less than 0.5 m (1.6 ft).

Samples lap and split times, speed, position and acceleration.

Delta, predictive, split and theoretical lap timing.

Supports more than 4,000 tracks worldwide.

Automatic track recognition and lap timing.

Uses GPS, GLONASS, BeiDou and Galileo satellite systems.

Rapid satellite signal acquisition.

Provides GPS-based vehicle speed without requiring a wheel speed signal.

Configurable and data analysis supported through AiM Race Studio 3.

Plug-and-play connection to Link’s MXS, MXG and MXT Strada displays.

AiM CAN connection.
